125cc Twin FS Engine
The new rc plane scale engine Roto 125 FS is completely maintenance-free, has high performance and is also suitable for use in aircraft such as the towing machine.
Our developers have managed to tune the engine for the use of propellers with a large pitch to achieve a realistic sound, and therefore we recommend for the Roto 125 FS engine a propeller with a pitch of 14 "Propeller diameters are from 28" to 30 "for two blade propellers.
The maximum engine power is up to 6 kW.
A unique novelty on Roto 125 FS engines is the factory-installed carburetor control. To control the throttle, we chose the Savox SV-1232MG servo, which is verified in practice on our UAV projects.
The reason for this improvement is to make it easier for customers to install the engine on an aircraft, just connect the servo to the receiver and set the servo deflection. The customer does not have to deal with servo levers or drawbars, everything is original from Roto.
-
Technical data
Engine displacement 125 ccm Power 8,3 kW Max static engine thrust 21 kg Bore 2x48 mm Engine weight 3970 g Engine & ignition weight 4140 g Arrangement of the engine boxer Cooling air-cooled Lubrication petrol 95 oct. + 2% oil RPM 1100 – 6000 Fuel system
Carburettor Recommended airplanes models
- Acrobatic: Up to 3 m
- Scale/Sport: Up to 4,5 m
Recommended propeller
2 BLADE: 28/10 up to 30/14
3 BLADE: 26/10 up to 28/12Recommended airplanes models
- Acrobatic: Up to 3 m
- Scale/Sport: Up to 4,5 m
Recommended propeller
2 BLADE: 28/10 up to 30/14
3 BLADE: 26/10 up to 28/12Standard packaging

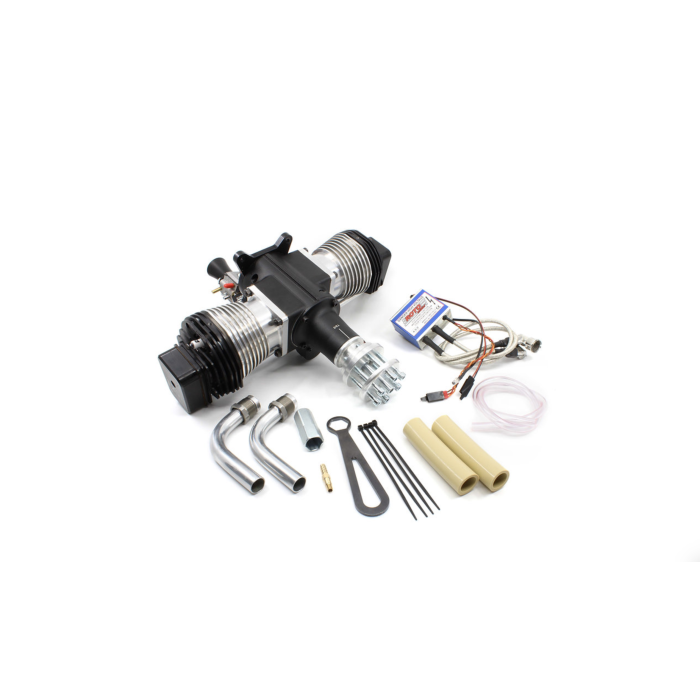

ROTO 125 FS 1x Ignition 1x Exhaust pipes 2x Waste oil hose 1x Spark plug key CM6 1x Cable tie 4x Silicone tube 2x
