DLE128HD Hybrid UAV Engine，Launched in March, 2020, the dual cylinder two-stroke water-cooled piston engine, with efficient water cooling and heat dissipation, provides a more stable working mode for the engine. The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.
DLE 128HD Gas Engine
CAD$11,466.00
CAD$10,920.00
Manufacturer:
SKU #:
DLE128HD
Special Order [!]Dispatch as soon as item comes available.
Manufacturer:
parameter
- Generator parameters:
- Three phase permanent magnet generator
- Voltage: ac50v to dc50v
- Frequency: non constant frequency type, which changes with the engine speed
- Engine parameters:
- Horizontal opposed double cylinder water cooling
- Displacement : 128cm3
- Cylinder bore × Stroke: 47mm × 35mm
- Power 12hp/8300 RPM: 7.4kw (0 altitude)
- Idle speed: 3500-6000 rpm
- Engine weight: 6.2kg
- Weight of cooling system; 2kg (including 800ml coolant)
Enclosure
Radiator water pump and coolant storage observation window
Engine radiator
Food grade silicone braided pipe reinforced steam explosion-proof hose
ECU Had

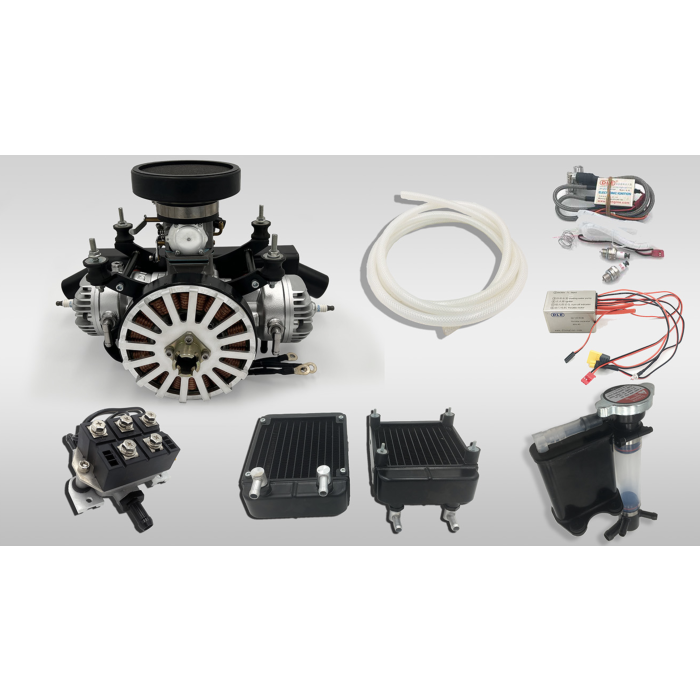

Complete engine Suite
Engine specific starter
DLE128HD Installation dimension drawing
Special Order [!]Dispatch as soon as item comes available.
