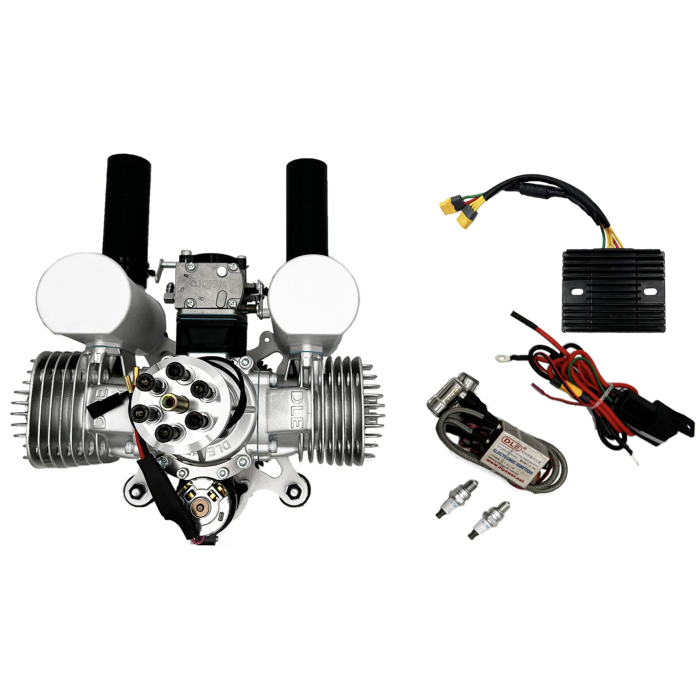

DLE 170cc With Electric Starter

CAD$4,321.80 CAD$4,116.00
Manufacturer:
SKU #:
DLE170S
Special Order [!]Dispatch as soon as item comes available.
Manufacturer:


DLE170 Integrated Starter and Generator version

DLE170 is an upgraded product of the previous RC Model engine DLE170 version. We have redesigned the entire structure

of the enginein order to providea better power. The new planetary gear starting mechanism has replaced the complex starting system in

earlier versions.It’s not only simplifies the number of parts be used, also reduces the weight of the engine and the failure rate. The new version of

engine now is capable for multi-task purposes. We can now provide different rotation (counter-clockwise , clockwise) and in-build generator kit.。

1659697782-xxcl1
1659706601-chilun-1

Planetary gear starter assembly

It has small size with high torque, high durability, more reliable choice for paramotor, UAV and other projects.

The output gear will only extend and drive the engine while starting the engine. After the engine is started and the starter stopped,

the output gear will disengage and retract to back.





weight




Engine+Muffler               5900g

Lgniter+Spark plug           265g

Relay                              160g

Rectifier                           415g

Engine+Muffler               5900g

Lgniter+Spark plug           265g

Relay                               160g

一一一

Parameter




performance          17.5HP/7500rpm

Diameter × Stroke    52mm × 40mm

Recommended Propeller 32×10 32×12

Compression Ratio           9.5 :1

Lubrication Ratio              30 :1

Displacement                  170cm³

Spark Plug Type      NGK CMR7H

Starting motor power     12V 400W

Generator voltage          14.5V

Generator power        350W/6000rpm

performance          17.5HP/7500rpm

Diameter × Stroke    52mm × 40mm

Recommended Propeller 32×10 32×12

Compression Ratio           9.5 :1

Lubrication Ratio              30 :1

Displacement                  170cm³

Spark Plug Type      NGK CMR7H

Starting motor power     12V 400W

一一一

一一一
