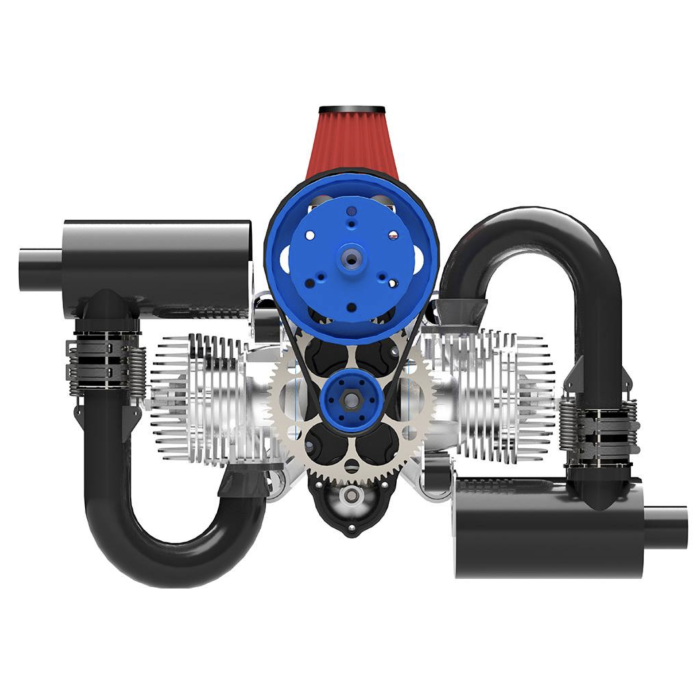

DLE 200 Gas Engine
CAD$7,497.00
CAD$7,140.00
Manufacturer:
SKU #:
DLE200
Special Order [!]Dispatch as soon as item comes available.
Manufacturer:
The entire DLE200 paramotor engine is equipped with new technology to improve performance, high efficiency, stability, and reliable power output.
Custom carbon fiber propeller
Custom carbon fiber propeller with the dimensions of 1220 X 25L. This propeller is made of high-quality carbon fiber materials, lightweight, and designed for efficient propulsion. The precise calculation of the blade geometry improves efficiency and increases thrust.
Innovative coating process for engine cylinders
Innovative coating process, high wear resistance, high pressure resistance, improves heat transfer performance and combustion efficiency.
Planetary gear starting mechanism
This is an efficient and reliable transmission mechanism that can provide greater starting power and a smoother starting process, while also having a longer service life
Aviation-grade shock-absorbing structure
The metal cover on top can prevent oil contamination and effectively protect the rubber parts from corrosion. Its design includes controlling the rebound impact under excessive motion shocks
Parameter
| Type | two-stroke |
| Diameter | 55mm |
| Stroke | 42mm |
| Displacement | 200CC |
| performance | 20HP/8000rpm |
| Compression Ratio | 10:1 |
| gear ratio | 1:2.7 |
| belt drive | belt |
| starting mode | electric start |
| net weight of the main unit (excluding exhaust pipe） | 9.5Kg |
| exhaust pipe weight | 2.6Kg |
| spark plug | NGKBR8HS-10 |
| Fuel | 93# 、97# |
| Generator voltage | 14V 5A |
| Propeller | 1220mm |
| main fastener installation torque | Kg.m | n.m | |
| spark plug | M14 | 2.4 | 24 |
| propeller fastening screws | M8 | 2.5 | 25 |
| cylinder fastening screws | M6 | 1 | 10 |
| crankcase fastening screws
|
M6 | 1.5 | 15 |
| M8 | 2 | 20 | |
| Exhaust pipe screw | M6 | 1.5 | 15 |
| eccentric shaft axial tensioning screws | M8 | 2 | 20 |
| eccentric shaft radial fixing screws | M8 | 2.3 | 23 |
| carburetor mounting screws | M5 | 0.5 | 5 |
| crankshaft front-end nut | M12 | 4 | 40 |
| crankshaft rear-end nut | M10 | 3.2 | 32 |
Download
DLE200 User Manual
DLE200 igs Three-dimensional diagram
DLE200 Installation Dimension Diagram
