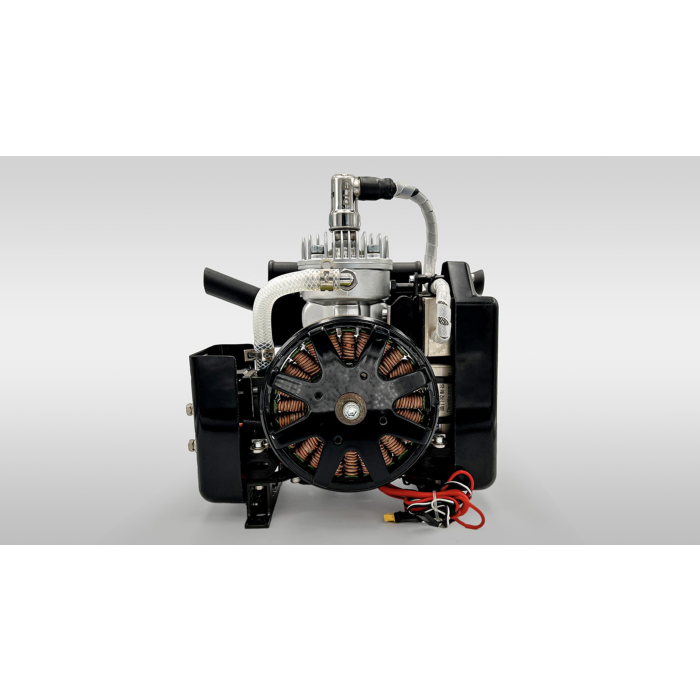

The DLE35HD hybrid engine, which was launched in April 2022, is a single cylinder two-stroke water-cooled piston engine. The efficient water-cooled cooling mode provides a more stable working mode for the engine.The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.
parameter
- Generator parameters:
- Three phase permanent magnet generator
- Voltage: ac50v to dc50v
- Frequency: non constant frequency type, which changes with the engine speed
- Engine parameters:
- Single cylinder water cooling
- Displacement : 35cm3
- Cylinder bore × trip：38.5mm×30mm
- Power: 3.5hp/8500 RPM power: 2.5kW (0 altitude)
- Idle speed: 5000-6000 rpm
- Engine weight: 3.3kg
- Weight of cooling system; 2kg (including 800ml coolant)
Enclosure
Radiator water pump and coolant storage observation window
Engine radiator
Food grade silicone braided pipe reinforced steam explosion-proof hose
ECU Had
Complete engine Suite
Self powered start integrated
DLE35HD Installation dimension drawing
