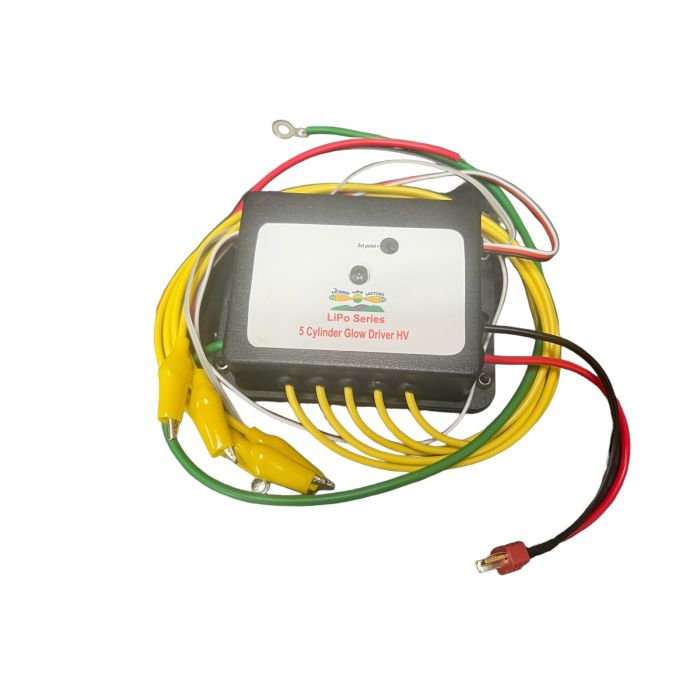

LiPo Glow Driver 5 Cylinder

Features

• The glow plug is inhibited below the user selected tick-over position.
• The operating point (set point) can be anywhere on the stick travel.
• The stick direction is automatically detected.
• LED lights when Glow plug is active.
• LED lights to confirm set-up.

Operation

When the throttle stick is above the set point, the glow plug is off and the LED is dark. As the throttle stick position is reduced to below the set point, the LED will glow to confirm that the glow plug is on. Below tick-over, the glow plug is off and the LED will flash at a low rate.

Set-up

Connect the throttle servo to the receiver using a “Y” harness and plug the Digital Glow Driver lead into the spare arm of the “Y”.  Move the throttle stick to the tick-over position and press and hold the set key.  The LED glows to confirm that the tick-over position has been stored.  If the LED is already glowing (because of a previous setting) when the key is pressed, the LED will blink out before glowing to confirm that set-up is active.  Move the throttle stick to the position where you would like the Glow Plug to activate.  (About one eighth throttle is a good starting point.)  Release the key.  The LED goes out to confirm that the set-up is complete.

The tick-over and set points can be adjusted at any time by repeating the set-up instructions above.

When the throttle stick is above the set point, the glow plug is off and LED is dark.  As the throttle stick position is reduced to below the set point, the LED will glow to confirm that the Glow Plug is on.  Below tick-over, the glow plug is off and the LED is dark.

LED Warning

There three types of warning a slow flash to indicate that the glows plugs out because you are below tick over, a medium rate flash indicating that the battery has gone flat and a rapid flash indicating that there is no battery connected. In the case of a flat LiPo. Disconnect it from the unit and recharge it using your LiPo charger. The unit will not operate with a flat LiPo.

SAFETY

Please ensure that the selection key cannot be pressed accidentally while the unit is in use.

LiPo batteries must be treated with respect. Please disconnect the LiPo battery from the unit when storing the model.

The LiPo Glow Driver is intended for use with a single LiPo cell of 4.2 volts. Do not use higher voltage LiPo packs.

Wiring

Connect the glow battery and glow clip to the Digital Glow Driver following the diagram below. Be sure to observe the correct polarity of the glow battery.
