P²-ServoBridge

Be the first to review this product

Manufacturer: PowerBox

Pre Order

£35.75 £29.79

SKU

9250

Barcode: 4250416704658

Universal servo bus adapter with electronic fuse

Skip to the end of the images gallery

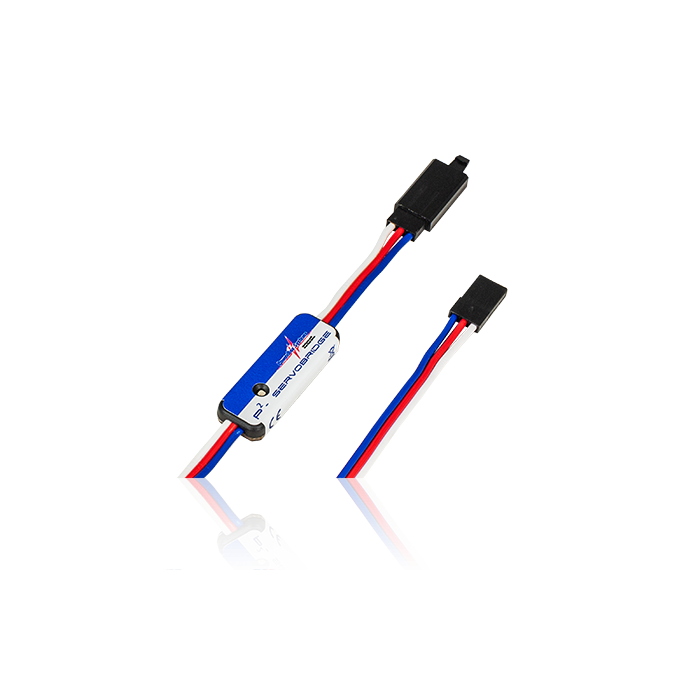

main product photo

Skip to the beginning of the images gallery

Features

Automatic detection of the bus system in use
Can be used with P²-BUS, S.BUS2, SRXL/UDI or PWM
Telemetry data for PowerBox, Jeti and Futaba radio control systems
Current, voltage and temperature acquired at the servo itself
Adjustable at the transmitter with PowerBox and Jeti radio control systems
Unrestricted choice of bus channel
Variable PWM frame rate: 12ms, 14ms, 16ms and 18ms
Accurately adjustable electronic fuse
Automatic fuse reset function
Facility to set two separate cut-off currents and times

Fuse immune to wear or ageing effects
Fuse not temperature-dependent
LED display of power-off processes
Can be updated via USB interface
Compact design: 35mm x 12mm x 4mm
Low weight: 4g

Technical Data

Operating voltage	4.0 V - 10.0 V
Current drain Power-on state	10mA
Maximum load current	20A
Signal input	P²-BUS, S.BUS2, EX-BUS, SRXL, PWM
Supported RC systems	PowerBox, Jeti, Futaba, all with PWM
Channels	26
Servo sockets	1
Servo signal resolution	0.5µs

More Information

More Information
Barcode	4250416704658
Manufacturer	PowerBox
