Manufacturer: PowerBox
Special Order
£72.66 £60.55
Release Date: 2023-04-25

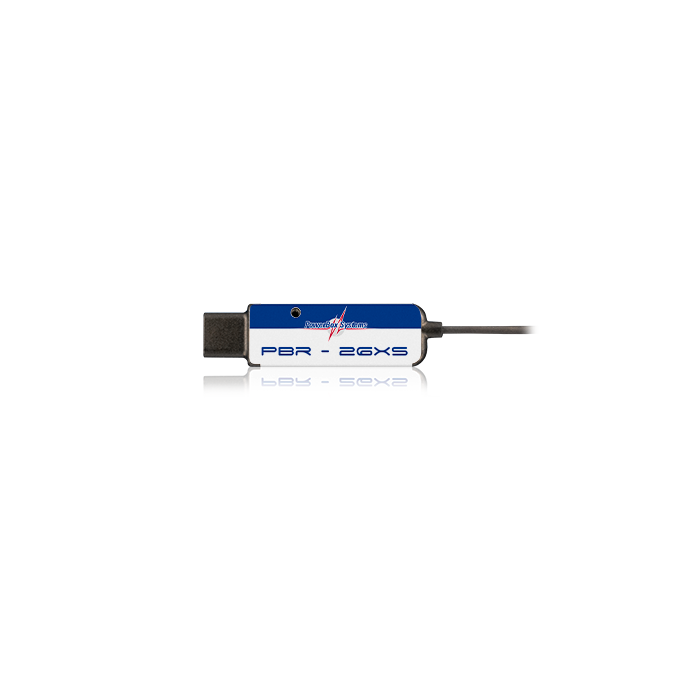

26 Channel 2.4GHz Receiver


The PBR-26XS serves as a small receiving unit for any PowerBox system, or as an external expansion receiver for PBR receivers. For optimum reception the PBR-26XS can even be installed in a slim fin, since it is only 4mm thick.

The PBR-26XS connection communicates PPM12 and S.BUS as well as PowerBox protocols, such as P²-BUS and FastTrack Out, which means that the receive unit can also be used with third-party flight simulators or helicopter gyro systems.

More Information
Release date 25 Apr 2023
Output Voltage 4.0V - 9.0V
Dimensions 46 x 13 x 4 mm
Weight Sensor Switch 3g
Temperature Range -30°C to +85°C
Current drain standby 58mA
Channels 26
Supported telemetry systems P²-BUS
Servo signal resolution 4096 Steps
Programmable servo outputs P²-BUS, FastTrack, S.BUS, PPM12
  • 26 channels 2.4 GHz receiver
  • Reception with extreme resistance to interference
  • Extreme range
  • The ideal receiving unit for PowerBox or FBL systems
  • Integral telemetry and servo bus (P²BUS)
  • High-performance real-time telemetry
  • Reception quality and battery voltage permanently available via telemetry
  • Includes various protocols, such as P²-BUS, FastTrack, S.BUS, SRXL, PPM12
  • Parameter settings for all functions from the transmitter
Manufacturer PowerBox
