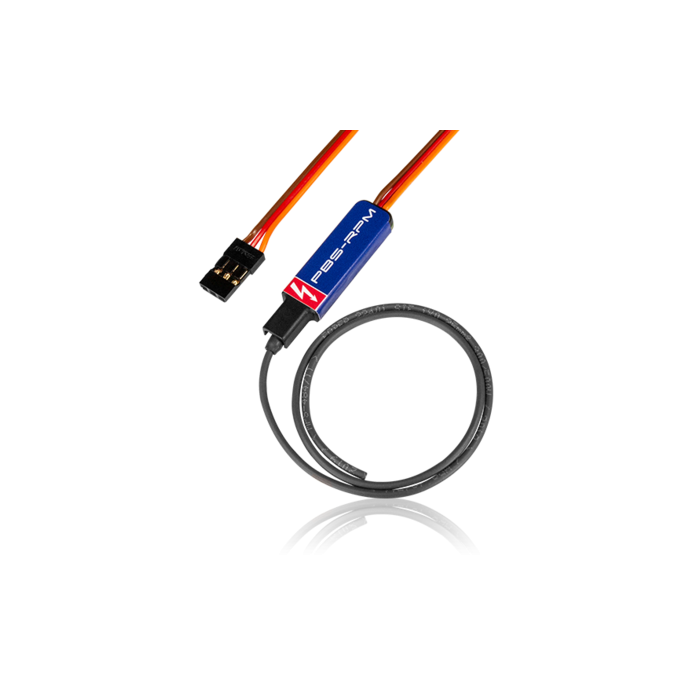

PBS-RPM, RPM Sensor
The PBS-RPM is a rotational speed (rev-count) sensor which is easy to install. It is designed to work with the PowerBox CORE, but is also suitable for use with other telemetry systems!
Installation is quick and simple: the sensor lead attached to the PBS-RPM is simply wound round one of the ignition system’s high-voltage leads. The field strength of the high voltage is sufficient to supply accurate rotational speed information to the sensitive detector in the PBS-RPM. The unit can be used with all types of engine - two-stroke and four-stroke.
The PBS-RPM is Plug’n’Play for the CORE telemetry system, but can also be switched for use with Jeti, M-Link and HoTT using the PowerBox Terminal program.
Note: the RPM Pickup cannot be used with a DA70 engine!
| Operating Voltage | 4.0V - 9.0V |
|---|---|
| Dimensions | 40 x 10 x 4 mm |
| Temperature Range | -30°C to +85°C |
| Supported rc systems | PowerBox, Jeti, Multiplex, Graupner, Futaba |
| Features |
|
| Manufacturer | PowerBox |
