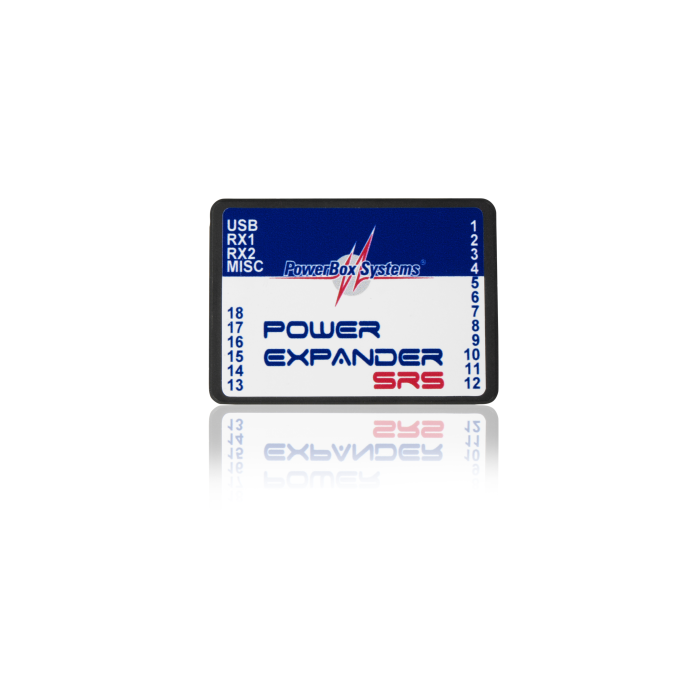

PowerBox PowerExpander SRS with MPX Connector
The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers.
The PowerExpander SRS makes it possible to exploit all the channels provided by your radio control system when using small but highly-specified receivers. Safety is also significantly enhanced, because two receivers can be connected to the PowerExpander SRS. The integral Serial Receiver System selects any receiver, and - if an error should occur - switches over automatically to the receiver which is still operating.
This represents a simple method of doubling the number of receiver aerials. The unit is fitted with a high-current socket to ensure that the power supply can cope with the large number of channels which it makes available. It also features an output carrying the S-BUS signal, which makes it possible to use any radio control system in conjunction with an S-BUS wiring arrangement.
As powersupply we recommend the PowerBox BaseLog or the PowerBox Gemini II.
| Operating Voltage | 4.0V - 9.0V |
|---|---|
| Power Supply | 2S LiPo, 2S LiIon, 2S LiFePo, 5S NiCd/NiMH |
| Dimensions | 55 x 40 x 14 mm |
| Temperature Range | -30°C to +75°C |
| Signal Input | serial |
| Supported rc systems | PowerBox, Futaba, MPX, Jeti, Spektrum, JR, Graupne |
| Receiver Redundancy | SRS |
| Channels | 18 |
| Servo Sockets | 18 |
| Signal frame rate | 12ms, 15ms, 18ms, 21ms |
| Features |
|
| Maximum load current | Peak 30A |
| Manufacturer | PowerBox |
