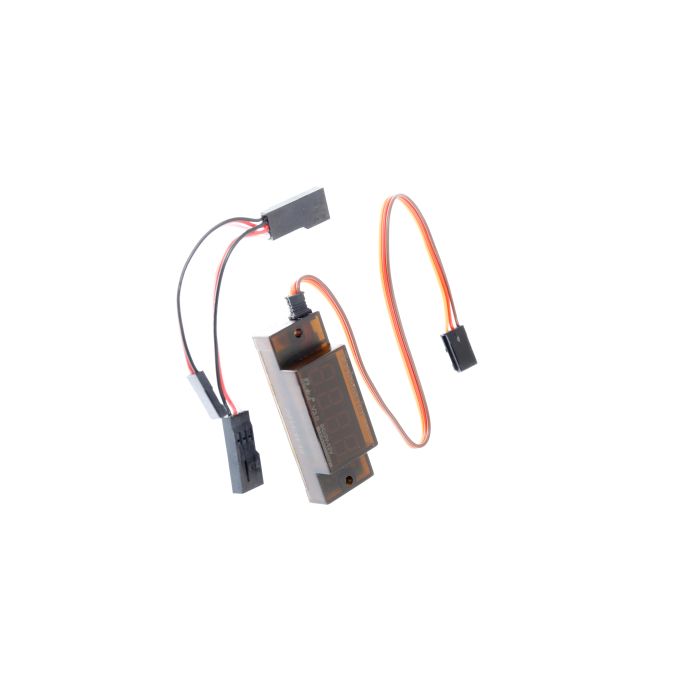

RCEXL Ignition Mini Tachometer RPM Reader

What's in the box

• 1 RCEXL Ignition Mini Tachometer RPM Reader

Specifications

• Use  P1C16f628a microcontrollers
• Do not need batteries, power from the ignition
• Standard Futaba Plug(Black-negative Red-Postive and White-Signal)
• Using high-brightness LED digital tube
• Input voltage range: 3.5V - 12V
• Current consumption 25mA-60mA
• Mini tachometer indicates up to 30000rpm
• Actual RPM=Display digital 10
• Body size:41mm L54mm x W18.8mm x H15.8
• Window size: L30mm x W13mm
• Weight: 8.5g(0.3OZ)

Instructions

• The Y wiring tandem between in the Hall sensor and the ignition
• The tachometer plug the other end with Y wire
• Connected to ignition power supply and can be displayed

Note

That connecting plugs do reinforcement.To preven vibration. the hall sonsor

& tachmoter wire leave from the ignition high-voltage wire, And re-ceiver wires over 30cm

Connection tachometer is not recommended after the use of the flight, Best to remove the Y wire to restore the original sensor connectionIf ignition have an additional tachometer pinout,You must be connected to dedicated tachometer signal wire
