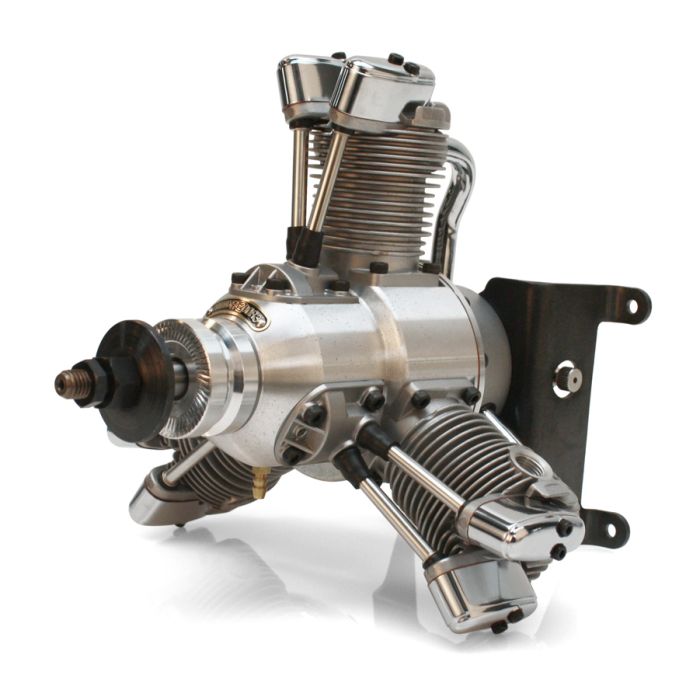

SAITO FA-200R3 RADIAL ENGINE
Manufacturer:
Saito
Special Order
Special Price
£898.75
£748.96
Regular Price
£1,069.94
SKU
SAT200R3
Product Features
- 20% more displacement than the FA-170 R3, resulting in 20% more power.
- Same mounting dimensions as the FA-170 R3, so there is no need to customise the plane.
- Complete with a 3-piece flex exhaust system for an all-inclusive purchase.
Product Description
Saito's FA-120R3 radial engine is designed for use with 120 size scale and sports aircraft.
The FA-200R3 is an upgrade from the FA-170R3, featuring 20% larger displacement and 20% more power all at a lighter weight resulting in a high power-to-weight ratio. Additionally, the FA-200R3 comes with a 3-piece flex exhaust system, making this an all-inclusive purchase for the customer.
Specifications:
| Bore: ø27.0mm x 3 |
| Stroke: 19.2mm x 3 |
| Stroke Volume: 32.98cc |
| Weight: Approx 1,440g (w/Muffler) |
| Practical Speed: Approx 1,800 ~ 9,500rpm (Recommended highest speed on ground: 8,000 ~ 9,000rpm |
| Recommended Prop: 16" x 8" ~ 16" x 10" or 17" x 6" ~ 17" x 8" |
| Fuel: Synthetic oil (Above 20%) with 15~20% nitromethane content |
| Fuel flow: Approx 46cc/minute (at full throttle, approx 9,000rpm) Fuel flow varies depends upon propeller load. More fuel flow with larger load and less fuel flow with smaller load. (In actual flight, fuel flow somewhat increases.) |
| Static thrust: APC 16" x 8" - 6.3Kg (9,000rpm) |
| Manufacturer | Saito |
|---|
