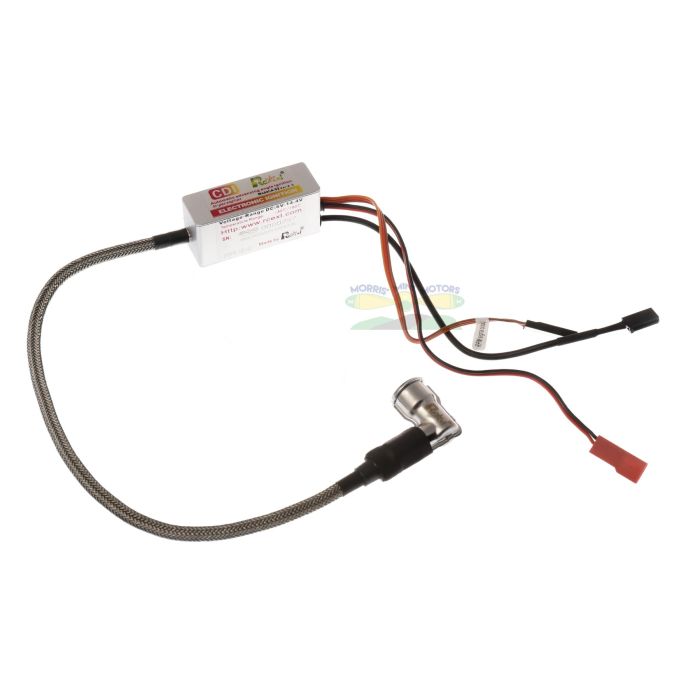

RCEXL Single Cylinder Ignition 90 Degree CM-6 / 10mm 9/16" (14mm Hex) Spark Plug Cap (NEW DA35 /3 magnets)

Manufacturer: RCEXL
In stock [!] Usually dispatch same day.
£61.98 £51.65
SKU
RCEXL-1124-DA
Release Date: 2021-07-15
Package including:

  • 1  RCEXL Single Cylinder Ignition 90 Degree CM-6 / 10mm 9/16" (14mm Hex) Spark Plug Cap (6v to 14.4v) (NEW DA35 /3 magnets)
  • 1  Hall Sensor Kit
  • 1  Contraction Duct
Specifications:

  • CDI Unit Weight:  125g
  • Working Voltage:  6v 6.6v 7.4v up to 14.4v
  • Suitable for Spark Plug:  CM-6 / 10mm 9/16" (14mm Hex)
  • Plug Type:  Futaba Female (for Battery), Futaba Female (for Tachometer)
  • 3 magnets
Recommend Timing

We recommend setting the at 30BTDC when the magnet (LEAVING) the sensor antickwise.
The ignition unit will automatic retard to 20BTDC up on startup at 100 RPM - 2000 RPM.
The ignition unit will fire the plug twice for easy start.
The ignition unit have an automatic curve up to 4000 RPM then after that it is 30BTDC (or your static timing that you set it at) we recommend 30BTDC
