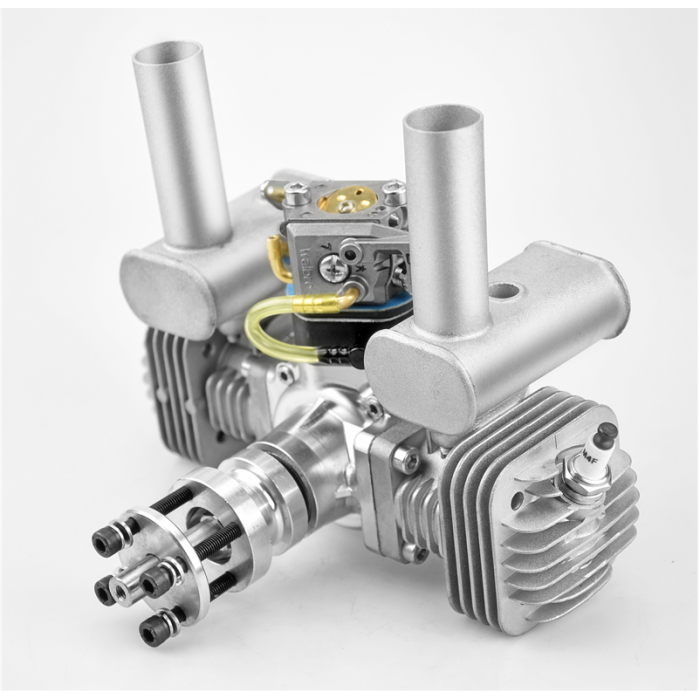

RCGF 50cc Gas / Petrol Twin Cylinder 2 Stroke Engine
CAD$0.00
CAD$0.00
Manufacturer:
SKU #:
RCGF-50T
Special Order [!]Dispatch as soon as item comes available.
Manufacturer:
Besides the parts listed in the picture, RCGF 50ccT includes gasket, bolts, throttle arm extension,a compact muffler,spark plug and manual.
RCGF new 8.4V electronic ignition means faster first- time starts, smooth idling ,higher performance and superb throttle transition.
CNC made crankcase make it shining and stronger.
RCGF 50cc T
Parameter:Type : 2 cycle piston valve type gasoline engine for airplane
Piston displacement Cylinder (cc) : 50cc(3.05 cu.in)Bore x Stroke (mm): 1.34 in(34mm) x 1.13 in (28.6mm)Carburetor : RCGF
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-8.4V
Maximum Output :4.7HP/3.51KWRequires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1500-8600rpmGasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 20X10 7100rpm (Standard Two leafs prop)Suggested Propellers: 19x8, 19x10, 20x8 & 20x10
Suggested Break-in Prop: 20X8Sparking plug: NGK CM6 Type
Cooling System : Air Cooled
RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight :
Engine: 3.16 lb (1433 g)
2XMuffler: 5.36 oz (152 g)
Ignition Module: 5.12 oz (145 g)
Total: Weight: 3.81 lb (1730 g)
|
Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 or equivalent
Static Thrust:
24.7 lb (11.2 kg) @ 328 ft (100 m) altitude
23.4 lb (10.6kg) @ 5,900 ft (1800 m) altitude
Special Order [!]Dispatch as soon as item comes available.
