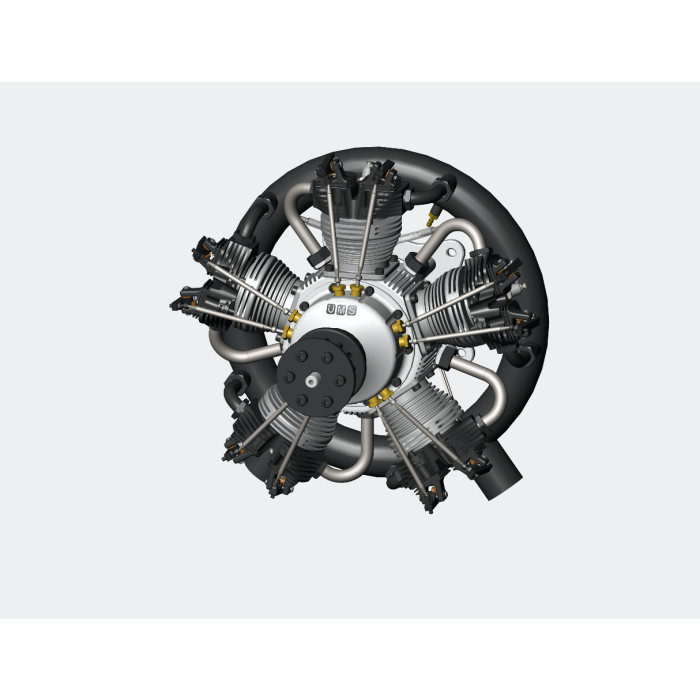

UMS 210cc Gas / Petrol 5 Cylinder Radial 4 Stroke Engine with Pump

Manufacturer: UMS
Special Order
Special Price £2,621.96 £2,184.97 Regular Price £2,759.96
SKU
UMS5-210

The UMS 5-210 is a very reliable radial engines which uses gas fuel. UMS has a ton of experience building radial engines. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accesisble.

Key Features

  • 5 cylinder radial configuration absolutely stunning looks and realism
  • 210cc displacement perfect for scale project
  • Comes complete with exhaust collector ring,spark plugs,electronic ignition, and engine mount ready to run
  • User friendly choke and throttle bellcranks included makes installation and operation easy
  • Made from aluminum or bar stock where appropriate and CNC-machined accurate and repeatable specifications each and every time
  • Cylinder head and crankcases produced from aircraft grade alloys
  • Heavy duty double bearing crankshaft
  • Billet aluminum pistons and hardened steel rings
  • Hard chromed and lapped cylinder bores
  • Hardened steel cams
  • Burns 87-110 octane gasoline with 32:1 gas/oil mixture

Technical information

  • Cylinder:                   5
  • Cylinder capacity:     210cc
  • Bore:                         37mm
  • Stroke:                      39.2mm
  • Power:                      23.5kg of thrust
  • RPM Range:            1000-6000
  • Weight:                     4.9kg incl.(ignition coil and silencer)
  • Width:                       282mm
  • Lenght:                     209mm
  • Propeller:                  32 x 10 1000 - 5900 RPM 2 Blade Menz's
  • Propeller:                  32 x 14   900 - 5300 RPM 2 Blade Menz's
  • Propeller:                  28 x 16   700 - 5300 RPM 3 Blade Biela
  • Muffler type:              Collector Ring
  • Plug type:                  CM-6 / 10mm RCEXL
  • Carburetor:                WT 793-A Carburetor
  • Petrol/Oil Mix:           1:32 2 stroke oil
