UMS 360cc Gas / Petrol 7 Cylinder Radial 4 Stroke Engine with Pump

Manufacturer: UMS
Pre Order
£0.00 £0.00
SKU
UMS7-360

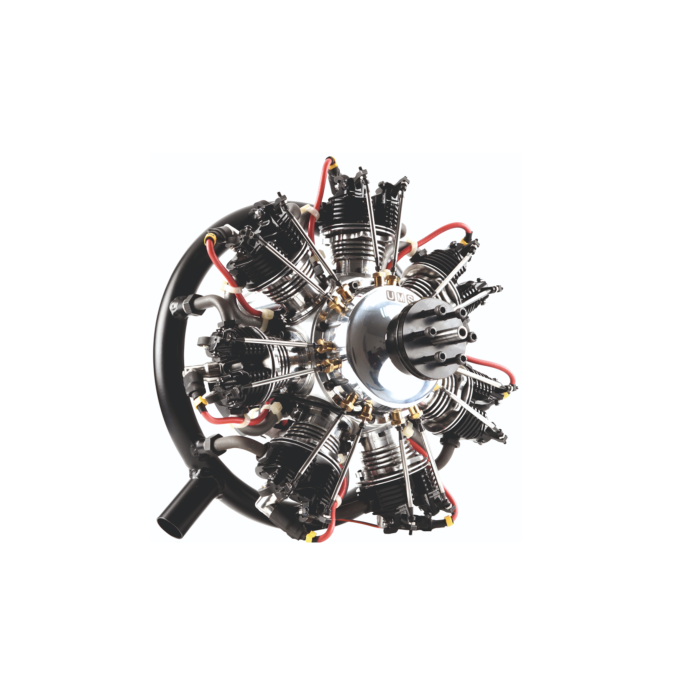

The UMS 7-360 is a very reliable radial engines which uses gas fuel. UMS has a ton of experience building radial engines. It has brought more than 2000 engines to market so far. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accesisble.

Technical information

  • Cylinder:                   7
  • Cylinder capacity:     360cc
  • Bore:                         40mm
  • Stroke:                      42mm
  • Power:                      38kg of thrust
  • RPM Range:            1000-6000
  • Weight:                     8.5kg incl.(ignition coil and silencer)
  • Width:                       335mm
  • Lenght:                     242mm
  • Propeller:                  39 x 14  1000 - 5900 RPM 2 Blade Menz's
  • Propeller:                  39 x 16    900 - 5800 RPM 2 Blade Menz's
  • Propeller:                  37 x 16    800 - 5300 RPM 3 Blade Biela
  • Muffler type:              Collector Ring
  • Plug type:                  CM-6 / 10mm RCEXL
  • Carburetor:                WT 225 Carburetor
  • Petrol/Oil Mix:           1:32 2 stroke oil
More Information
Manufacturer UMS
