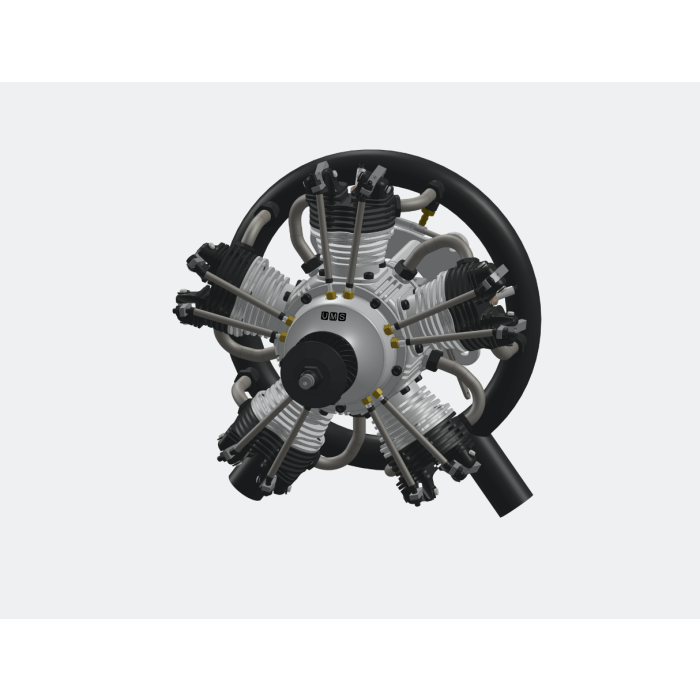

UMS 55cc Gas 5 Cylinder Engine

The UMS 5-55 is a very reliable radial engines which uses gas as fuel. UMS has a ton of experience building radial engines. It has brought more than 2000 engines to market so far. The design and construction are upper class leading to a outstanding realibility of these engines. They are easily servicebale. All critical parts are easily accessible.

• 5-cylinder radial configuration—absolutely stunning looks and realism
• 4-stroke
• Midsize 55cc displacement
• Comes complete with exhaust collector ring and electronic ignition —one-box purchase for a ready-to-mount-and-run engine
• User-friendly choke and throttle bellcranks included—makes installation and operation easy
• Made from aluminum or bar stock where appropriate and CNC-machined—accurate and repeatable specifications each and every time
• Cylinder head and crankcases produced from aircraft grade alloys
• Heavy-duty double bearing crankshaft
• Billet aluminum pistons and hardened steel rings
• Hard-chromed and lapped cylinder bores
• Hardened steel cams

Technical information

• Cylinder:                   5
• Cylinder capacity:     55cc
• Bore:                         23.7mm
• Stroke:                      25mm
• Power:                      7.5kg of thrust
• RPM Range:            1200-6000
• Weight:                     2.54Kg incl.(ignition coil and silencer)
• Width:                       201mm
• Lenght:                     142mm
• Propeller:                  21 x 10 1000 - 6000 RPM 2 Blade Menz's
• Propeller:                  22 x 8   1000 - 5700 RPM 2 Blade Menz's
• Propeller:                  20 x 10   700 - 5300 RPM 3 Blade Biela
• Muffler type:              Collector Ring
• Plug type:                  1/4-32 RCEXL
• Carburetor:                UMS Carburetor
• Petrol/Oil Mix:           1:32 2 stroke oil
